Brand Name : YBT
Model Number : YT376509
Certification : CE ISO SGS
Place of Origin : China
MOQ : 1 Set
Price : Negotiation
Payment Terms : T/T
Supply Ability : 10set
Delivery Time : 45-60 days
Packaging Details : Standard export packing with each machine tied and protected in container

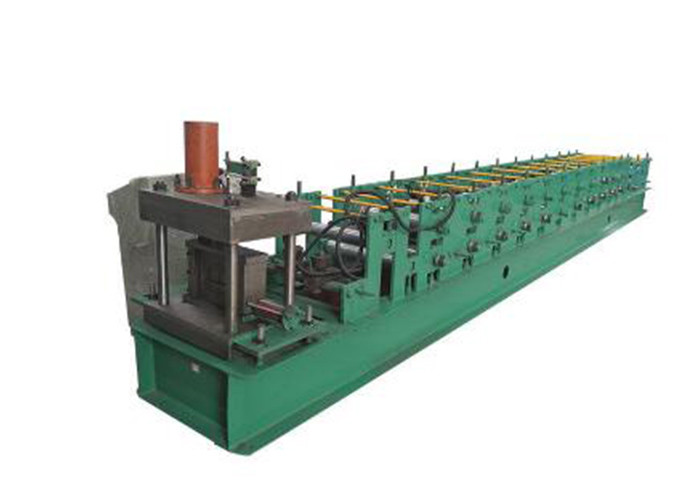

Name : Semi - Automatic C Section Purlin Cold Roll Forming Machine for steel frame
Automation : semi - auto
Raw material : Steel
Cutting Blade Material : Cr12 Mov
Control system : PLC control systerm
Input width of the plate : 80 - 300mm
Power : Hydraulic
Warranty : 1 Year
Processing flow of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Exit table
| No. | Mchine composition | Quantity |
| 1 . | Hydraulic decoiler 3T | 1 set |
| 2 . | Cold rolling mills | 1 set |
| 3 . | Hydraulic cutting device | 1 set |
| 4 . | PLC computer | 1 set |
| 5 . | Electric cabinet | 1 set |
| 6 . | Exit table | 1 set |

Technical Parameters:
| Suitable material
| Steel |
| Thickness of the plate
| 1.5-3.0mm |
| Input width of the plate
| 80-300mm |
| Width of the plate after forming
| 80-300mm |
| Productivity
| 0-25m/min
|
| Roller steps
| 14 rows |
| Roller material
| 45#steel Rolling chromium |
| Diameter of active shaft
| 90-120mm |
| Wall thickness of the mainforming machine
| 20mm steel plate |
| Main forming machine body
| 350mmH steel |
| Transmission chain
| 2 inches |
| Cutting hydraulic system
| CDF-10 gear pump |
| Motor power
| 5.5kw |
| Dimensions of major structure
| 8500mm*1600mm*1200mm |

Our services:
1 . Free technical support and free accessories supply.
2 . Engineer available to service machinery overseas.
3 . One year warranty is provided.
4 . Long life technical guidance for free.
5 . We always offer technical support, quick response, all your inquire will be replied in 24 hours.

|
|

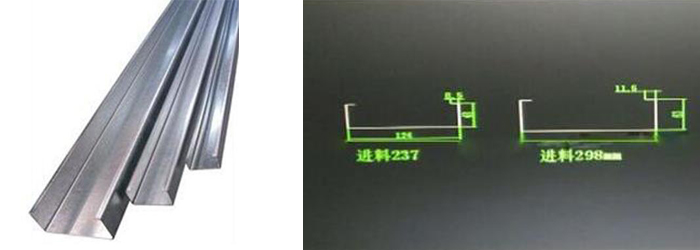

C Section Roll Forming Machine / Cold Roll Forming Machine C Z Purlin Punching Images |
